Philips บัลลาสต์ อิเล็คโทรนิค ฟิลิปส์ Electronic transformer ET-S 15 LED 220-240V

บัลลาสต์ อิเล็คโทรนิค ฟิลิปส์ Electronic transformer Philips ET-S 15 LED 220-240V

ET-S 15 LED 220-240V for 12 V LED Lamp

Philips Primaline is a high-frequency electronic halogen transformer suitable for lowvoltage 12 V halogen lamps. It offers ultimate performance and is built with overload and short circuit protection to IEC and ENEC standards. It is available in 70, 105 and 150 W versions and fits in small down light halogen applications. Ballast.

ETS 15

Specifications

General Information

Type Version	–
Lamp Type	LV Halogen
Number Of Products On MCB (16A Type B) (Nom)	90

Automatic Restart

Yes

Operating and Electrical

Input Voltage	220 to 240 V
Input Frequency	50 to 60 Hz
Power Factor 100% Load (Nom)	0.98
Mains Voltage Performance (AC)	202…254V
Mains Voltage Safety (AC)	198…264V

Inrush Current Width	0.10 ms
Power Losses (Nom)	0.99 W
Inrush Current Peak (Max)	15 A
Output Voltage	11.3 V

Wiring

Connector Type Input Terminals	Screw
Color Input Terminals	Orange
Connector Type Output Terminals	Screw
Cable Length From Device To Lamp	1.0 m

Wire Striplength	8.0-9.0 mm
Input Terminal Cross Section	0.75-1.50 mm²
Output Terminal Cross Section	0.75-1.50 mm²

System characteristics

Rated Ballast-Lamp Power

15 W



Temperature

T-Ambient (Max)	50 °C
T-Ambient (Min)	-20 °C

T-Case Maximum (Max)

65 °C

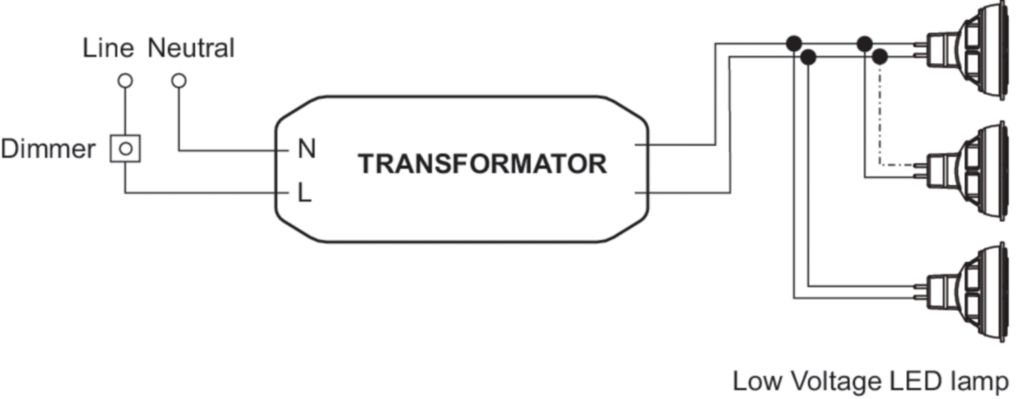

วิธีการติดตั้ง Transformer
